H3 led light bar mounts...

humvee

humvee

Well-Known Member
Messages
507
Location
Doha, Qatar

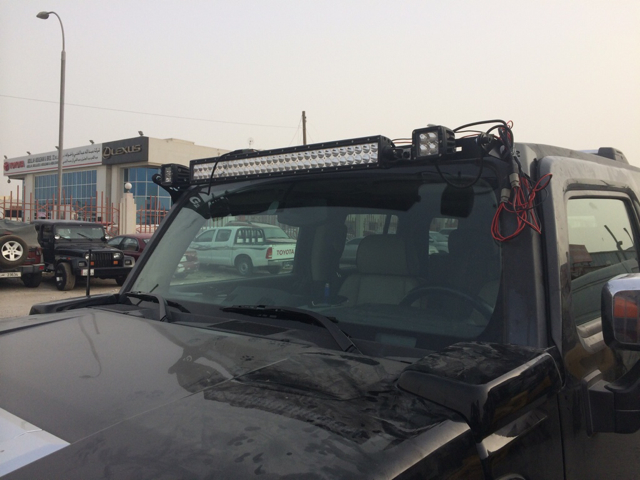

Installed mine yesterday.. G2 mount & cradle setup.

I still haven't tucked away the wires, looking to add two more duallys to cover the empty spots.

I welded the rev-nuts to the body for peace of mind. Need to add some rust protection here as this was one of my sloppier builds.

I don't like how its visible, or how it vibrates, I'll tuck the cradle up 90 degrees to hide behind the LEDs soon, but need to figure out a way to clear the wipers. That setup broke my right side wiper yesterday (got stuck). Also had excessive whistling noises starting at 20mph.

The glare off my chrome scoop is awful, will black that out tomorrow too hopefully. The glare off the rest of the hood is bearable though, but I could do without it.

I'll post more soon.


Sent from my iPhone using Tapatalk

SolidusJ

SolidusJ

Well-Known Member
Messages
2,028
Location
FT. Carson, CO
humvee said:
Installed mine yesterday.. G2 mount & cradle setup.

View attachment 15960
I still haven't tucked away the wires, looking to add two more duallys to cover the empty spots.

View attachment 15959
I welded the rev-nuts to the body for peace of mind. Need to add some rust protection here as this was one of my sloppier builds.

View attachment 15961
I don't like how its visible, or how it vibrates, I'll tuck the cradle up 90 degrees to hide behind the LEDs soon, but need to figure out a way to clear the wipers. That setup broke my right side wiper yesterday (got stuck). Also had excessive whistling noises starting at 20mph.

View attachment 15962
The glare off my chrome scoop is awful, will black that out tomorrow too hopefully. The glare off the rest of the hood is bearable though, but I could do without it.

I'll post more soon.


Sent from my iPhone using Tapatalk
Click to expand...

Sweet set up man, I think the whistling is from when the wind past from under the cradle between the window. I'm still trying to work that out but I don't think there's a way to beat it.

humvee

humvee

Well-Known Member
Messages
507
Location
Doha, Qatar
SolidusJ said:
I'm still trying to work that out but I don't think there's a way to beat it.
Click to expand...

Thanks! There is a way.. When I put the cradle in the normal position & not tucked behind the LED lights, all whistling went away, it also stopped the LED fixture itself from whistling too. So it eliminated everything, but vibrates more & doesn't look as nice.

Im going to build my own cradle, instead of the flat surface, I'm going to use a 1.5-2" thick steel tube, & mount the lights on that instead.

Less air resistance, & would clear my wipers too, I really mounted the G2 too far back.


Sent from my iPhone using Tapatalk

IISPEEDYII

IISPEEDYII

Well-Known Member
Messages
478
Location
Pennsylvania
Cortinas316 said:
G2 bracket site is down....can anyone access it? Having a slight panic attack if it's gone forever!!!
Click to expand...

It was down right before I got mine, I Facebook messaged them and they put it back up. Haha that was my thoughts exactly when I saw them, I justified the purchase by saying hey, they might not be making many more of them.
